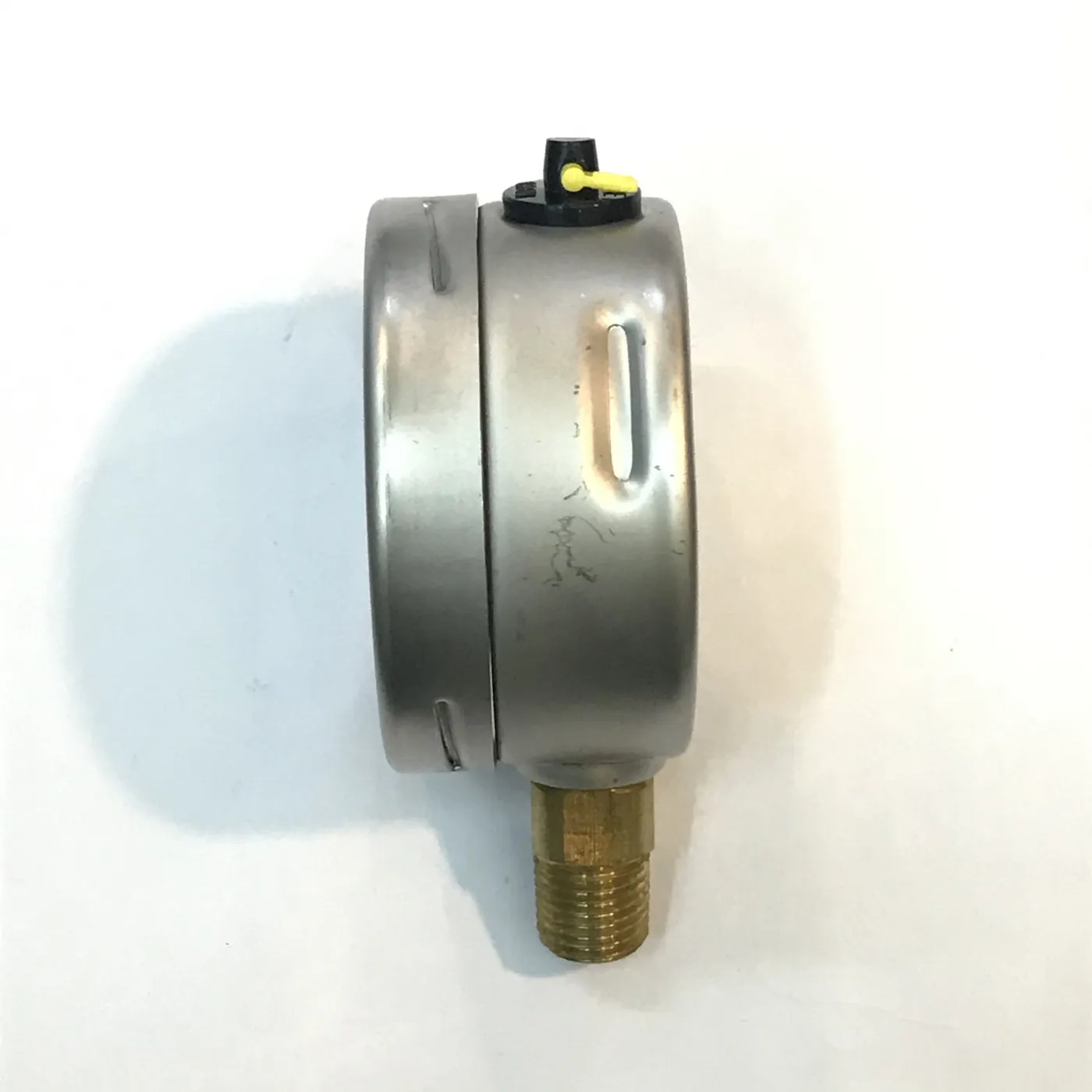

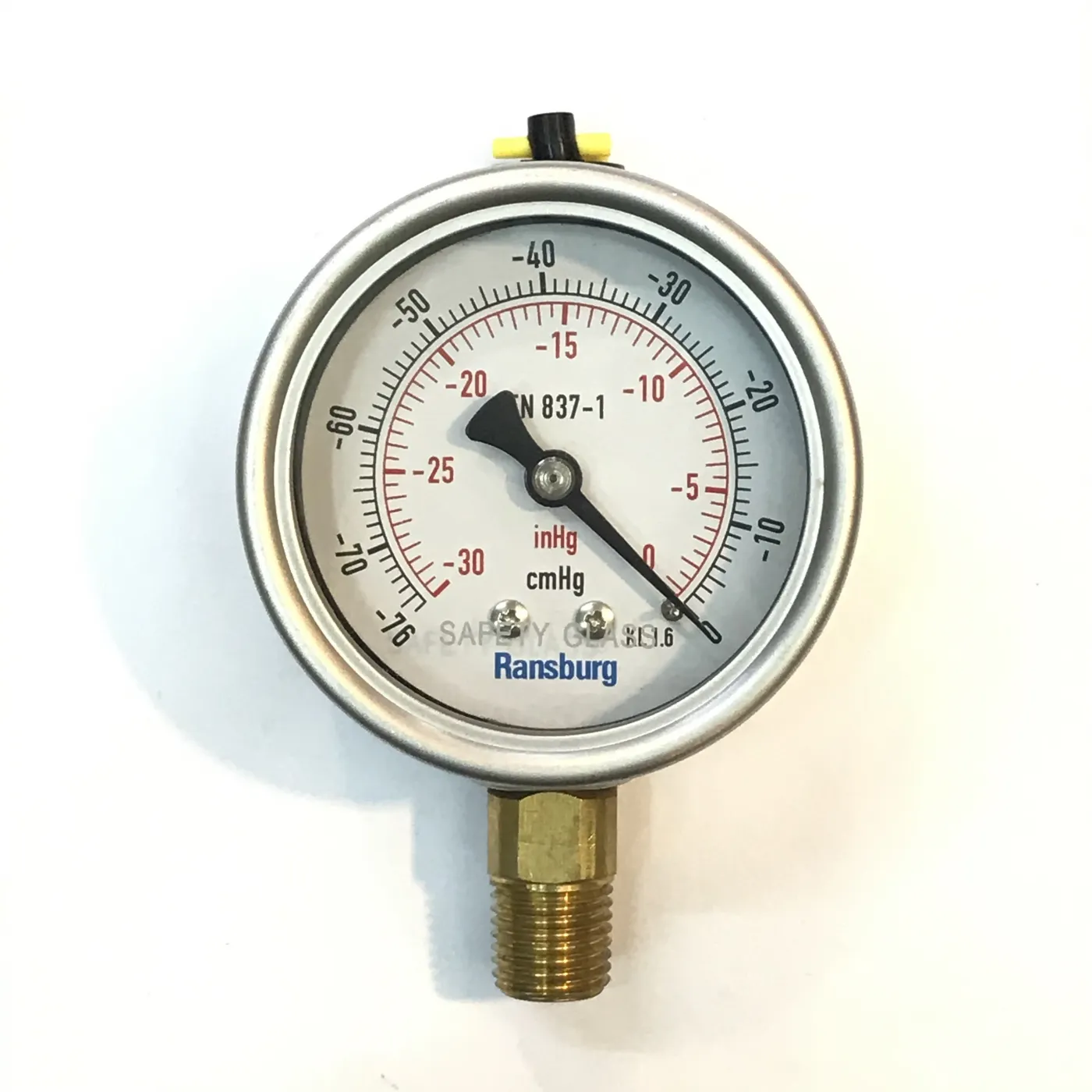

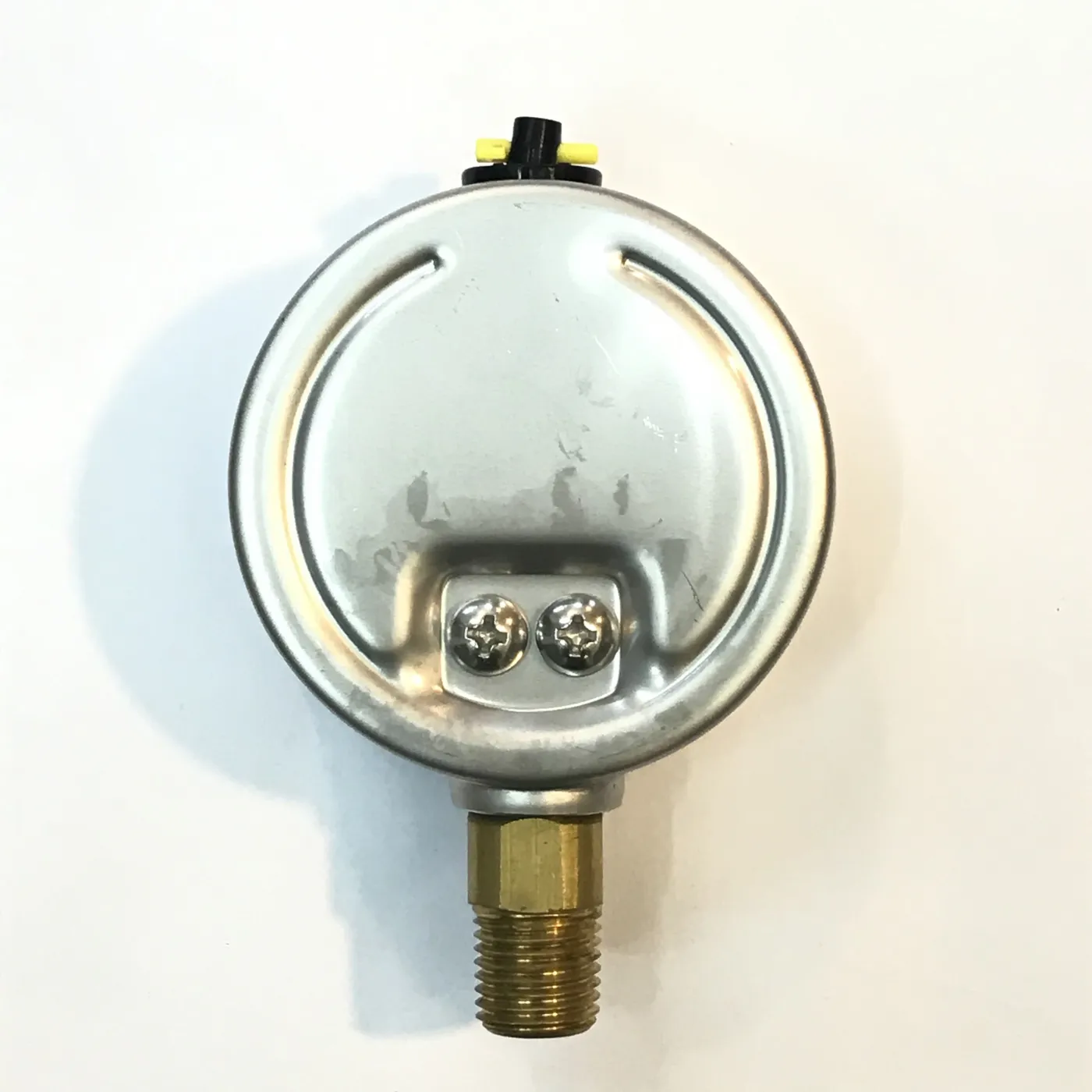

RVG 002 Vacuum Gauge
RVG 002 Vacuum Gauge — photo 1 RVG 002 Vacuum Gauge — photo 2 RVG 002 Vacuum Gauge — photo 3
RVG 002

RVG 002 Vacuum Gauge

Digunakan untuk sistem hidrolik dan pneumatik, kompresor, sistem udara bertekanan dan cocok untuk media cair yang tidak menyumbat lubang sambungan karena terbuat dari baja tahan karat, dapat juga memberikan perlindungan dari getaran.

Spesifikasi
Size
60mm (2.5inch)
Scale ranges
-76cmHg(-30inHg) - 0
Accuracy class
1.6% for Ø(40-75), 1.6% or 1% for Ø(100)
Connection
Brass, 1/4″ Ø(60mm)
Thread
NPT
Wetted part
Copper alloy
Case material
304 Stainless Steel
Bezel material
304 Stainless Steel
Window
Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
Filling Liquid
Glycerine
