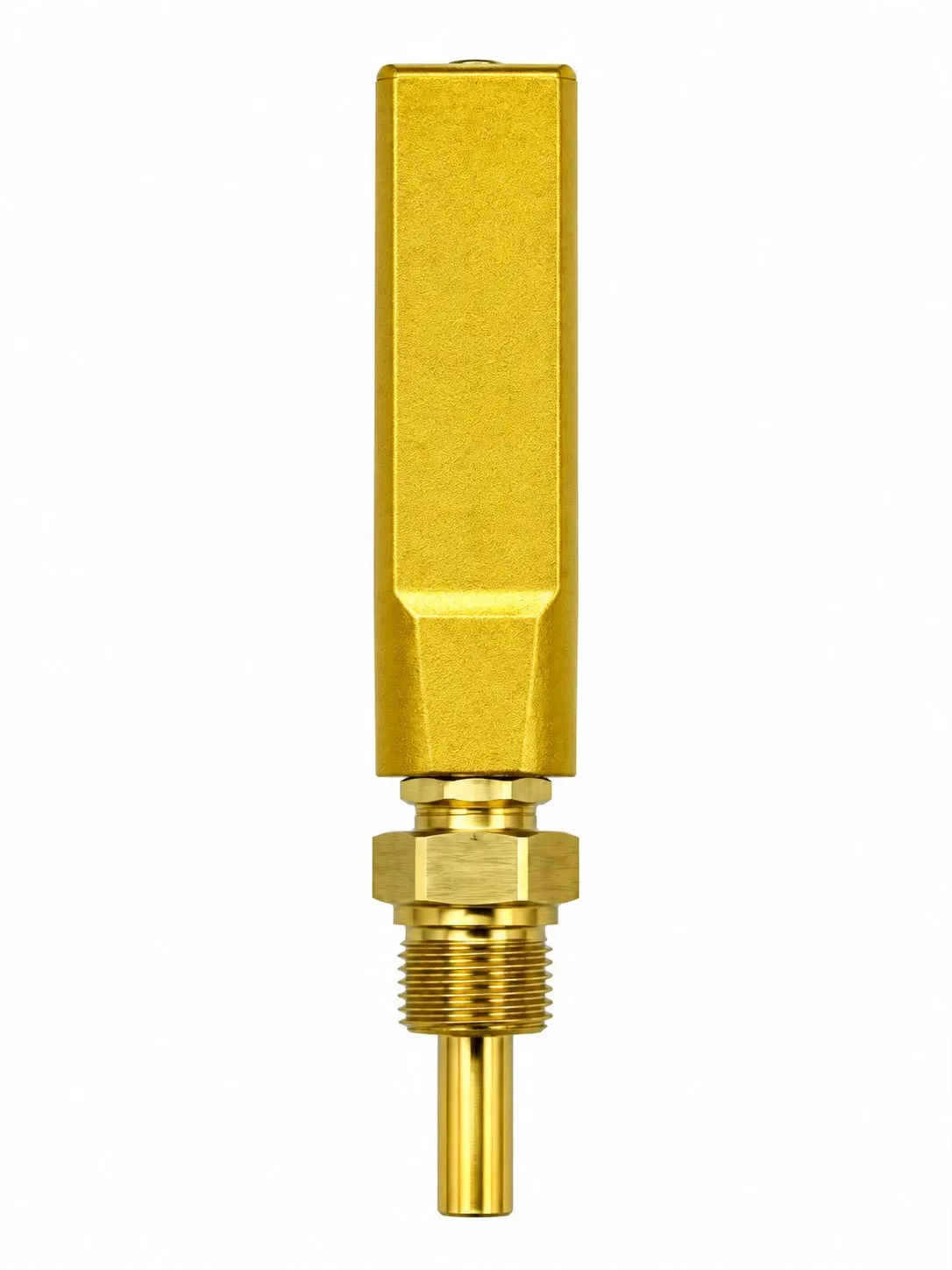

RTW 27 40mm Glass Thermometer
RTW 27 40mm

RTW 27 40mm Glass Thermometer

Temperature-measuring tool that works by using the expansion of liquid inside a sealed glass tube, featuring a bulb reservoir, a thin capillary bore, and a printed temperature scale.

Specifications
Applications
Marine Industry
Body length (mm)
110. 150. 200
Scale ranges
-40+60℃to0-600℃
Accuracy class
+/-2.5%
Pressure rating, max in bar of thermowell/stem
16 bar
Wetted parts
Copper alloy up to 200℃ Steel or stainless steel up to 600℃
Connection
Straight, 1/2″ BSP or Optional
Case material
Aluminum. Golden finish
