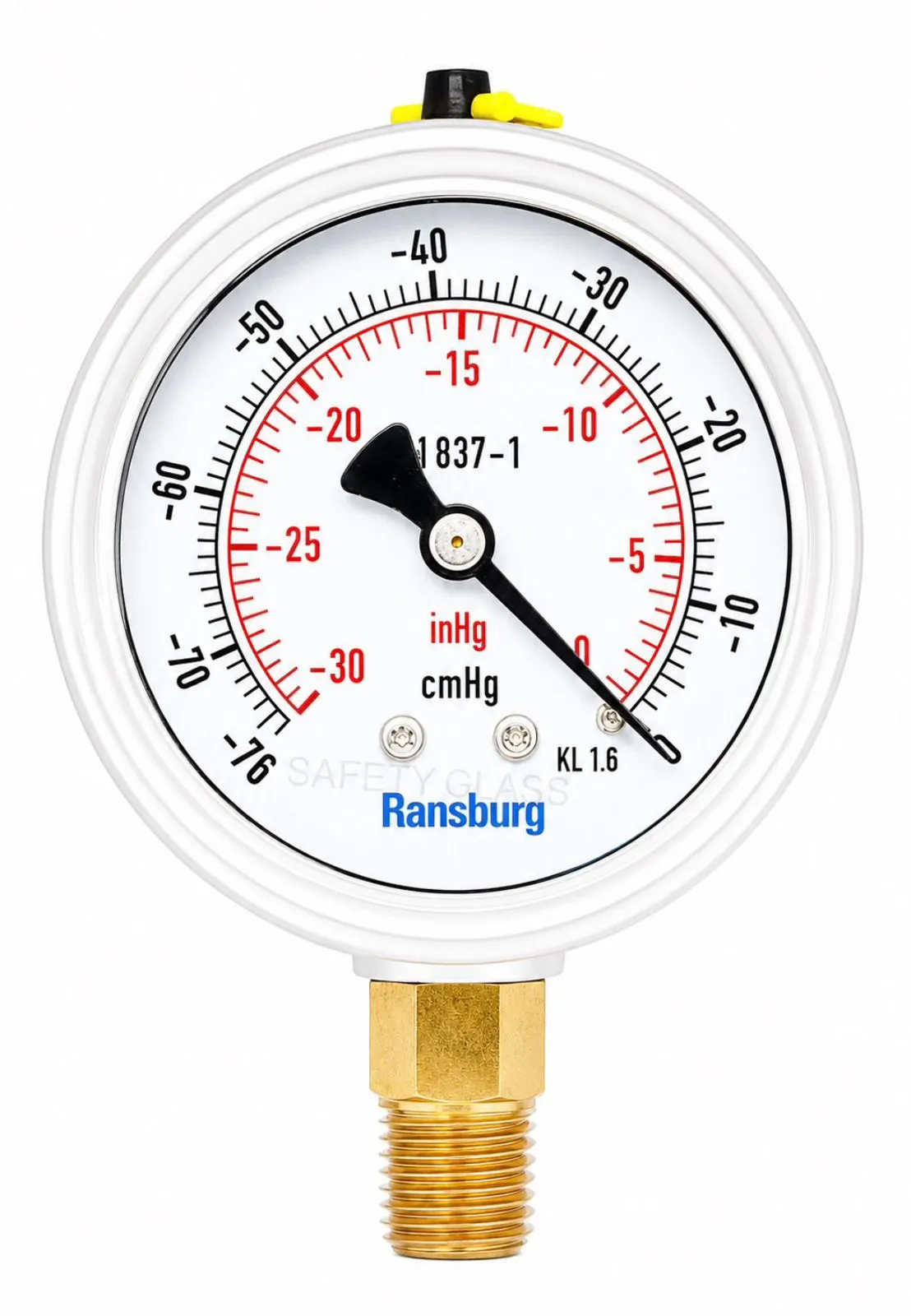

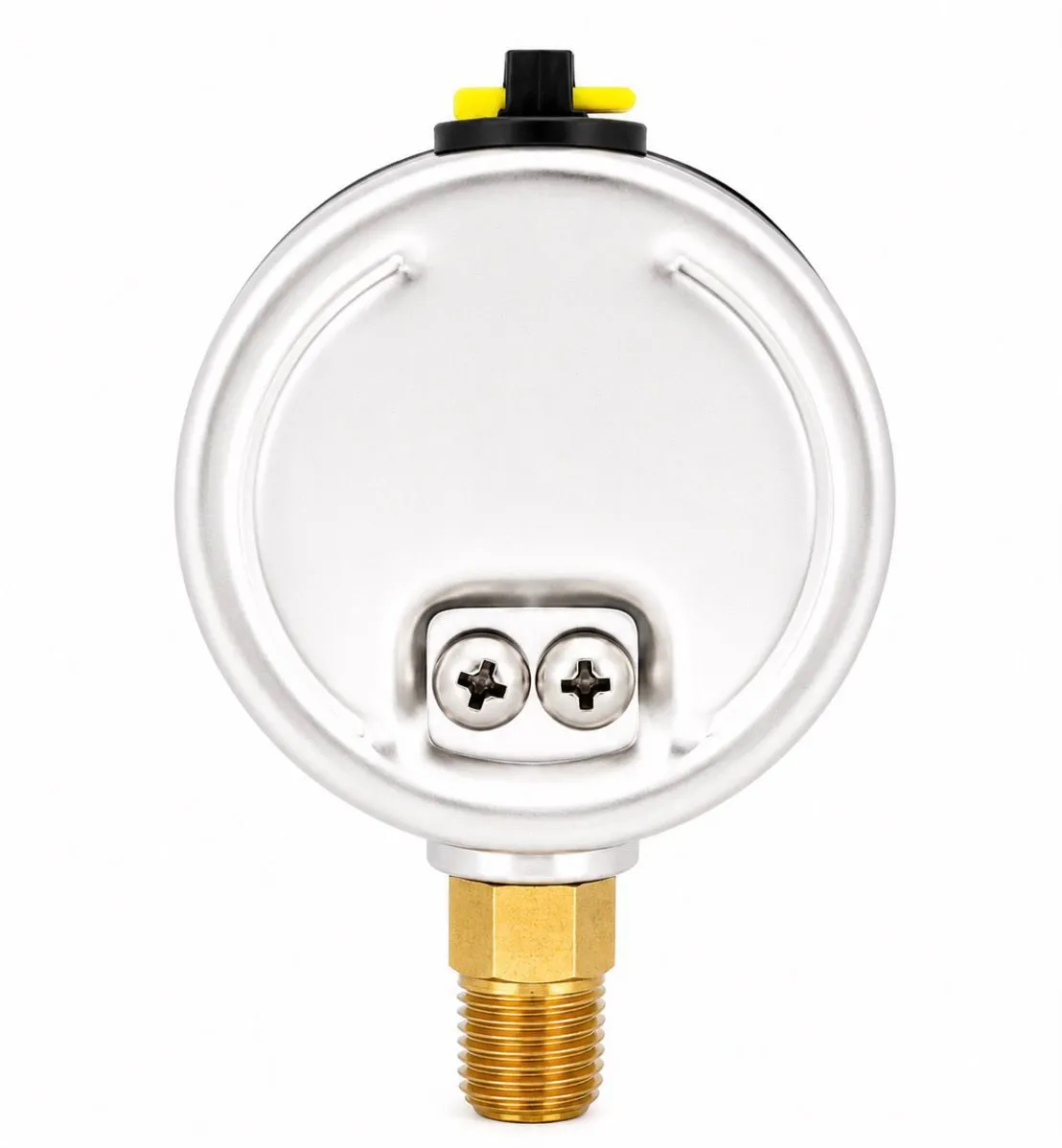

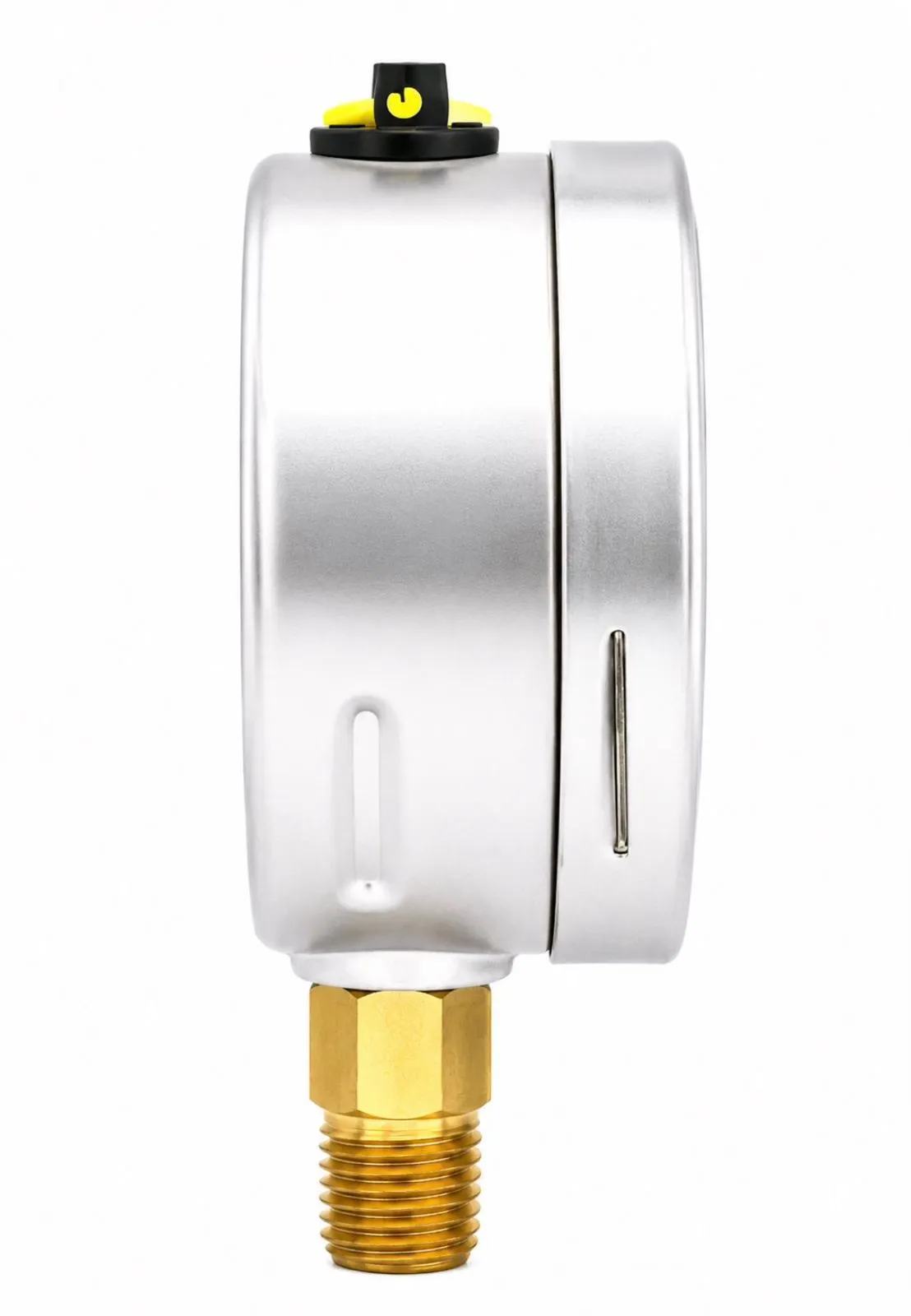

RVG 411 Vacuum Gauge
RVG 411 Vacuum Gauge — photo 1 RVG 411 Vacuum Gauge — photo 2 RVG 411 Vacuum Gauge — photo 3
RVG 411

RVG 411 Vacuum Gauge

Used for hydraulic and pneumatic systems, compressors, compressed air system and suitable for liquid medium which does not clog connection port or stainless steel also can provide protection from vibration and pulsation.

Specifications
Size
60mm (2.5inch)
Scale ranges
-76 cmHg/inHg - 0
Accuracy class
1.6% for Ø(40-75), 1.6% or 1% for Ø(100)
Connection
Brass, 1/4″ Ø(60mm)
Thread
NPT
Wetted part
Copper alloy
Case material
304 Stainless Steel
Bezel material
304 Stainless Steel
Window
Safety Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
Filling Liquid
Glycerine, Silicone
Request a Quote Where to Buy ← Back
