RWS 2410B Pressure Gauge 316L

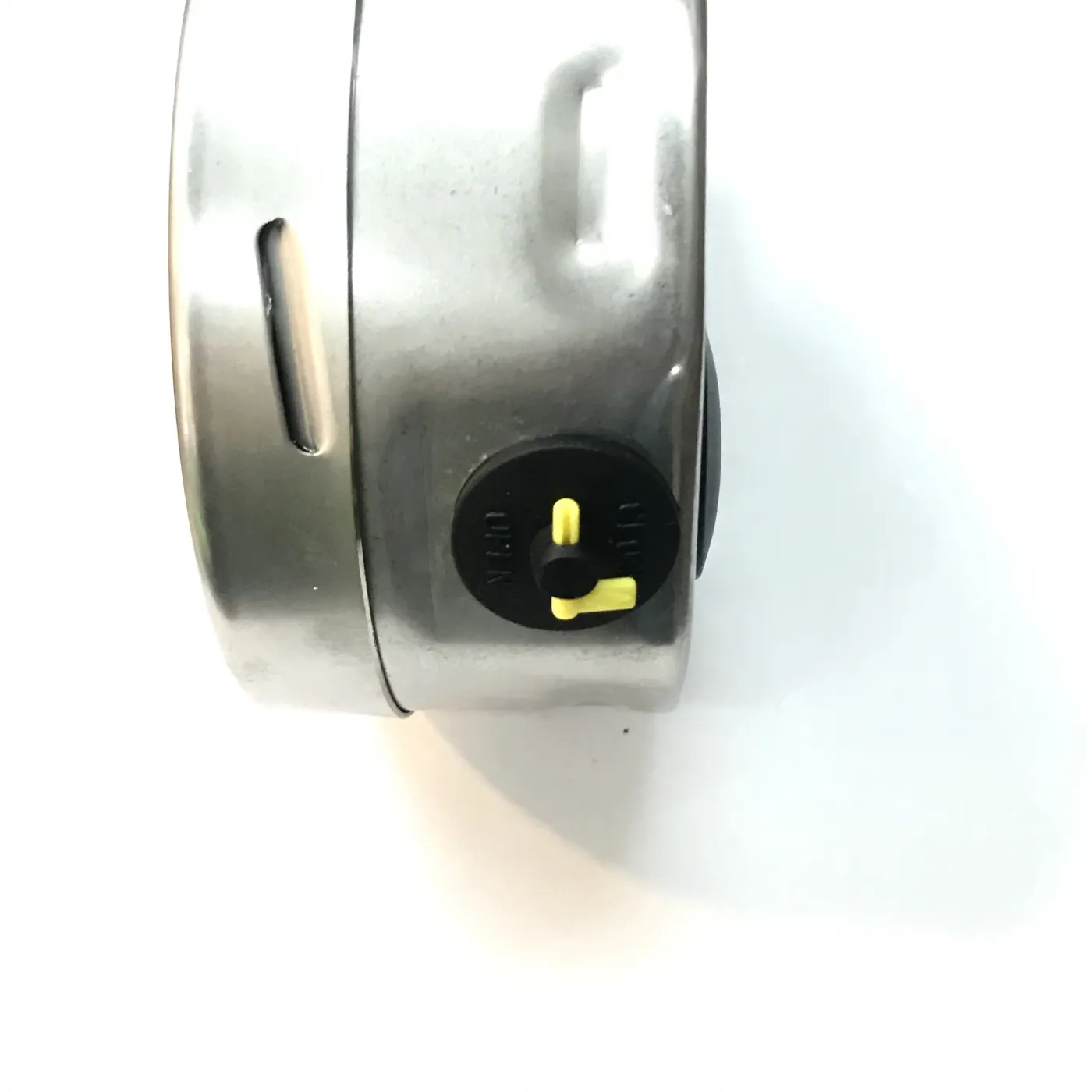

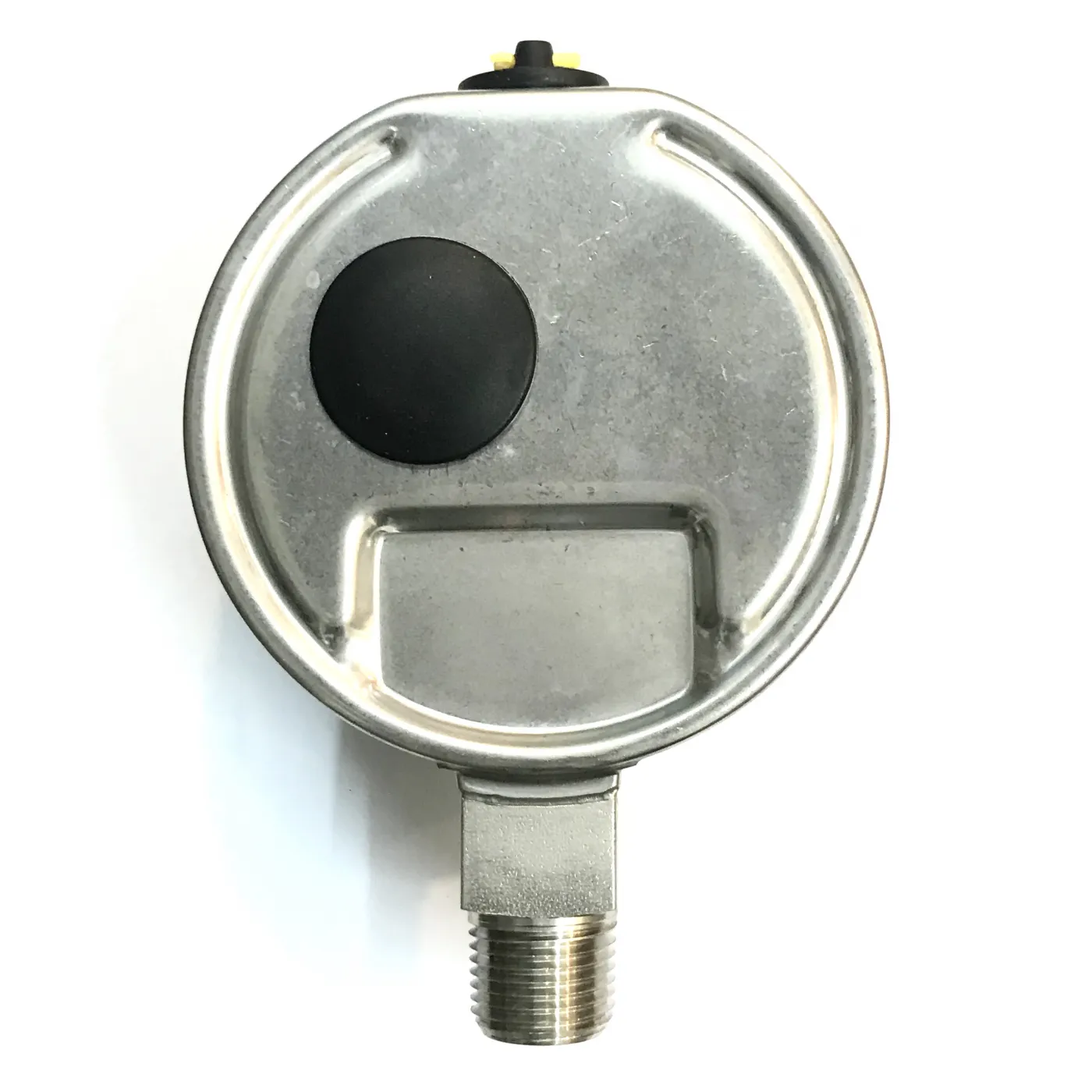

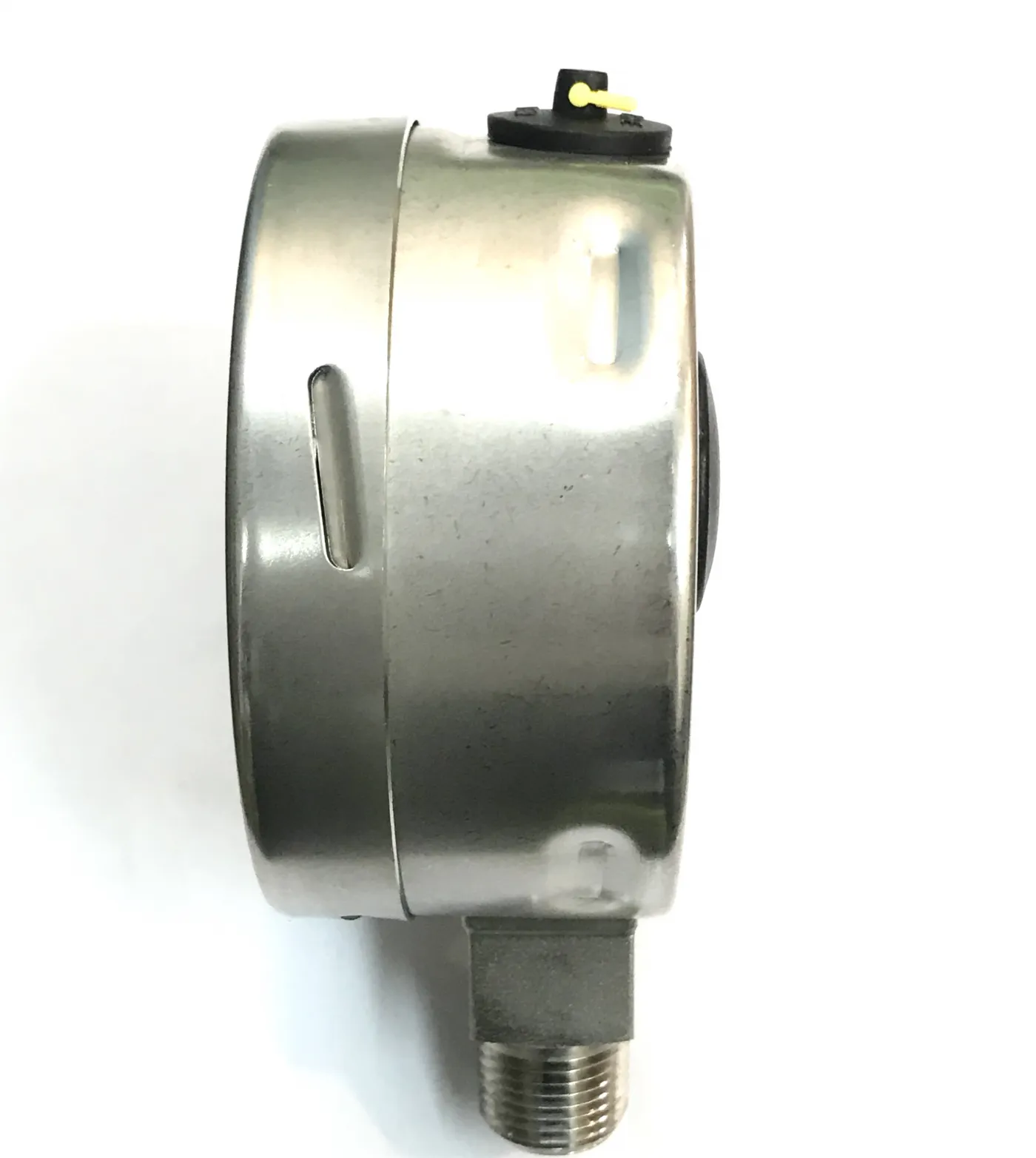

RWS 2410B Pressure Gauge 316L — photo 1 RWS 2410B Pressure Gauge 316L — photo 2 RWS 2410B Pressure Gauge 316L — photo 3 RWS 2410B Pressure Gauge 316L — photo 4
RWS 2410B

RWS 2410B Pressure Gauge 316L

Digunakan untuk sistem hidrolik dan pneumatik, kompresor, sistem udara bertekanan dan cocok untuk media cair yang tidak menyumbat lubang sambungan karena terbuat dari baja tahan karat, dapat juga memberikan perlindungan dari getaran.

Spesifikasi
Size
100mm (4 inch)
Scale ranges
0+1000bar ( 30”Hg/15000Psi )
Accuracy class
1.6% for Ø(63), 1% for Ø(100,160)
Connection
316-L Stainless Steel, 1/2 inch
Thread
NPT
Wetted parts
316 Stainless Steel
Case material
316 Stainless Steel
Bezel material
316 Stainless Steel,Bayonet Type
Window
Tempered Glass / Safety Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
Filling Liquid
Glycerine
