RWS 2410B Pressure Gauge 316L

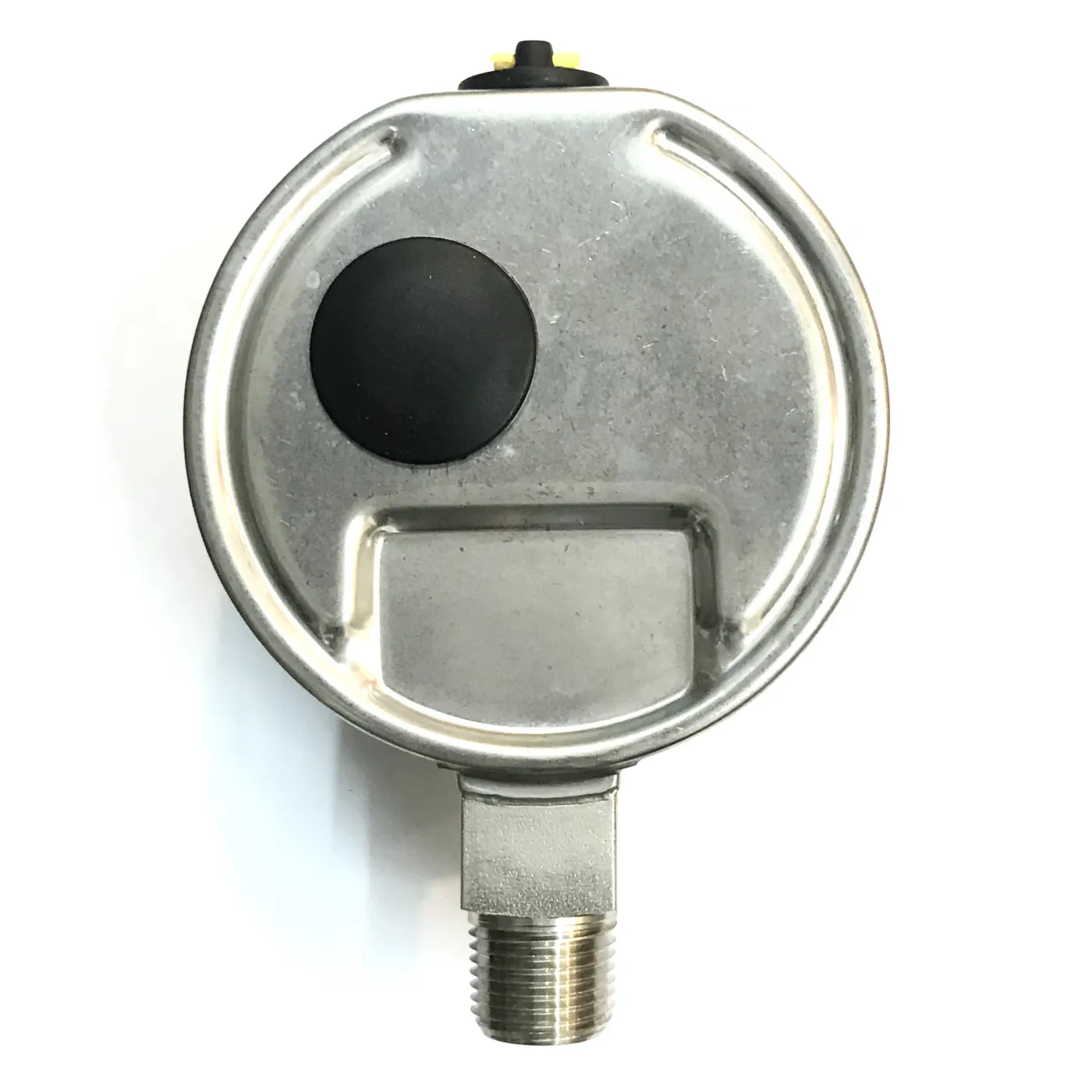

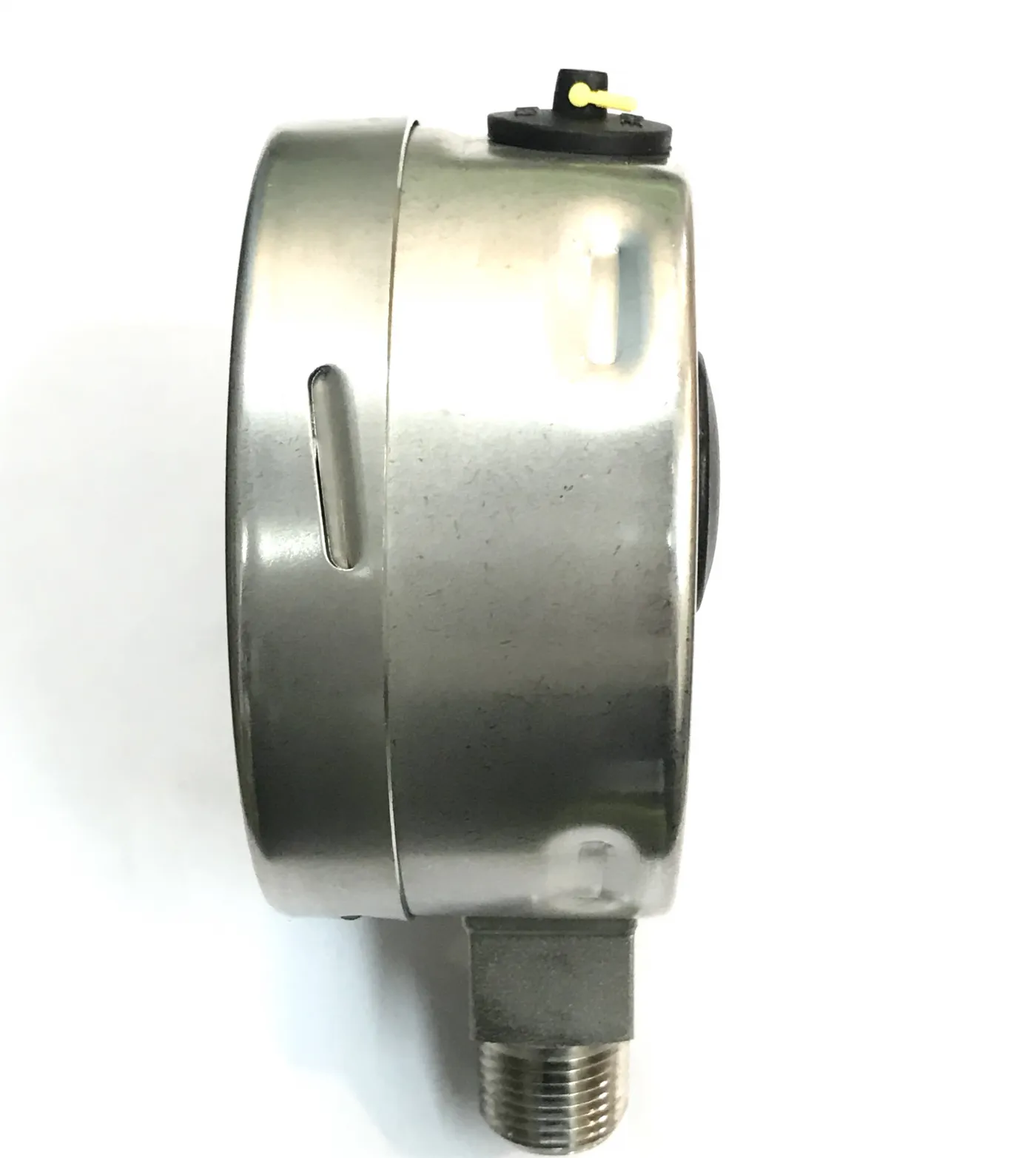

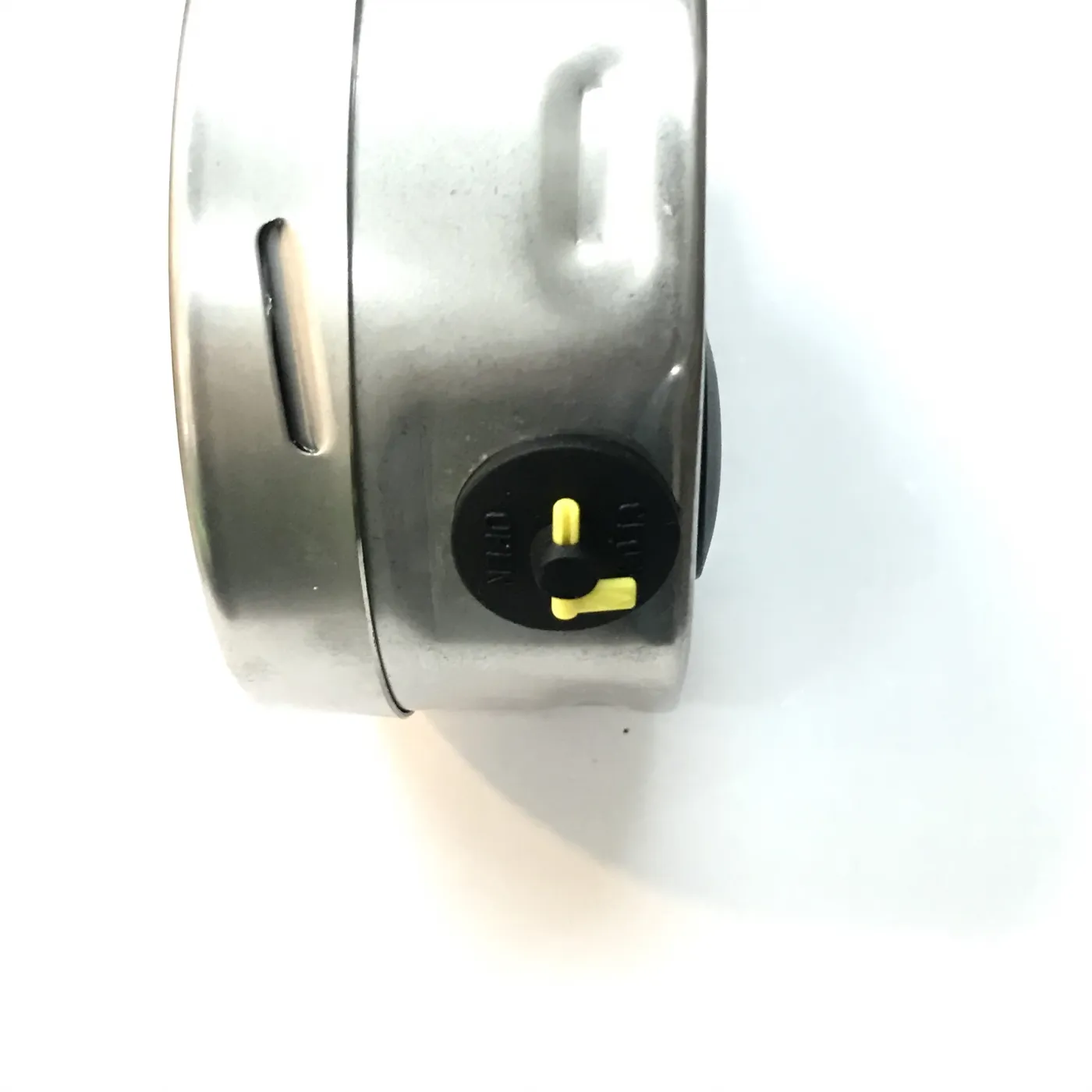

RWS 2410B Pressure Gauge 316L — photo 1 RWS 2410B Pressure Gauge 316L — photo 2 RWS 2410B Pressure Gauge 316L — photo 3 RWS 2410B Pressure Gauge 316L — photo 4
RWS 2410B

RWS 2410B Pressure Gauge 316L

Used for hydraulic and pneumatic systems, compressors, compressed air system and suitable for liquid medium which does not clog connection port or stainless steel also can provide protection from vibration and pulsation.

Specifications
Size
100mm (4 inch)
Scale ranges
0+1000bar ( 30”Hg/15000Psi )
Accuracy class
1.6% for Ø(63), 1% for Ø(100,160)
Connection
316-L Stainless Steel, 1/2 inch
Thread
NPT
Wetted parts
316 Stainless Steel
Case material
316 Stainless Steel
Bezel material
316 Stainless Steel,Bayonet Type
Window
Tempered Glass / Safety Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
Filling Liquid
Glycerine
