RWS 110 Pressure Gauge

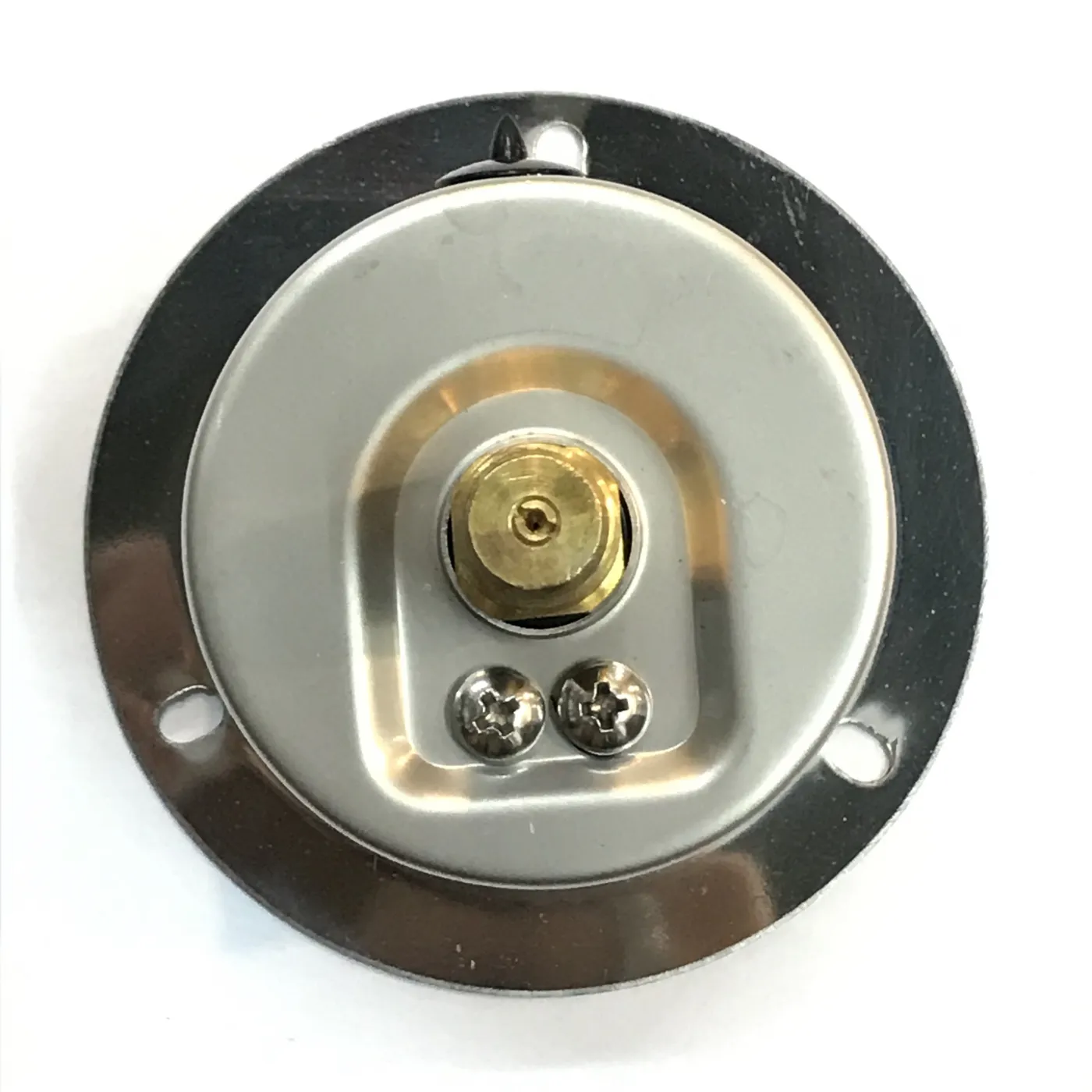

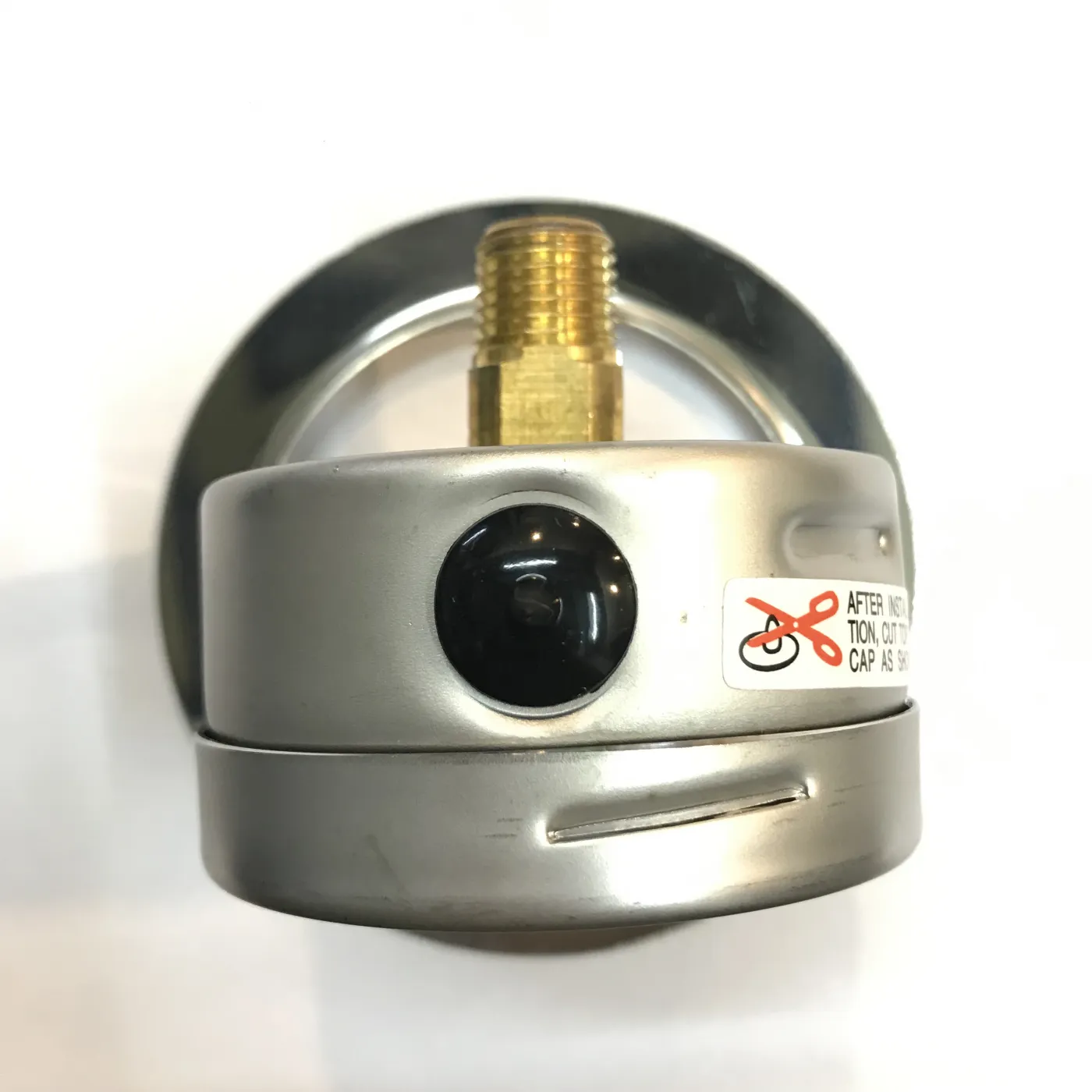

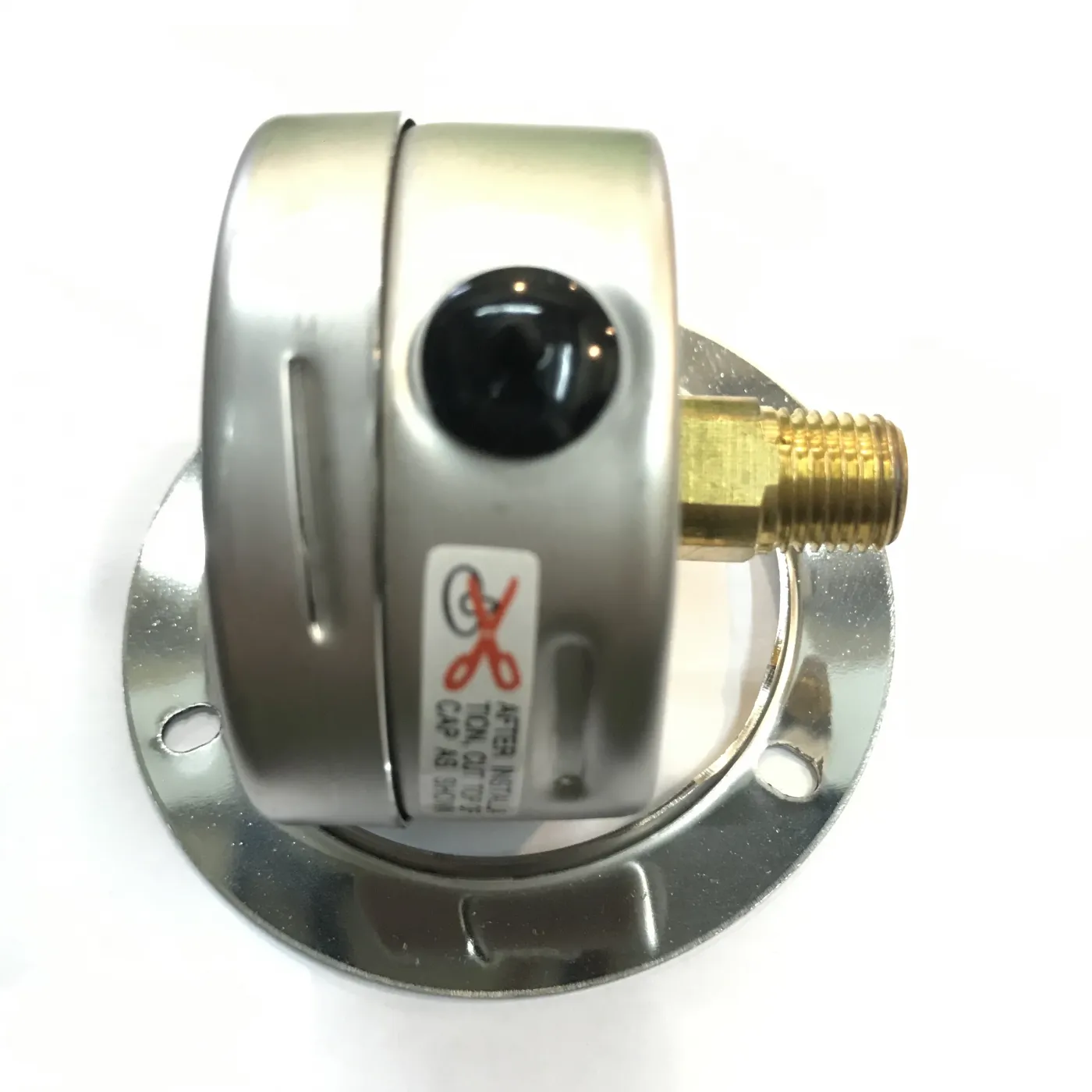

RWS 110 Pressure Gauge — photo 1 RWS 110 Pressure Gauge — photo 2 RWS 110 Pressure Gauge — photo 3 RWS 110 Pressure Gauge — photo 4
RWS 110

RWS 110 Pressure Gauge

Used for hydraulic and pneumatic systems, compressors, compressed air system and suitable for liquid medium which does not clog connection port or stainless steel also can provide protection from vibration and pulsation.

Specifications
Size
60mm (2.5 inch)
Scale ranges
0+1000bar ( 0+15000Psi )
Accuracy class
1.6% for Ø(63), 1% for Ø(100,160)
Connection
Center Back and Brass, 1/4 inch
Thread
NPT
Wetted parts
304 Stainless Steel
Case material
304 Stainless Steel
Bezel material
304 Stainless Steel,Bayonet Type
Window
Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
Filling Liquid
Glycerine
Request a Quote Where to Buy ← Back
