RWS 1990 Low Pressure Gauge

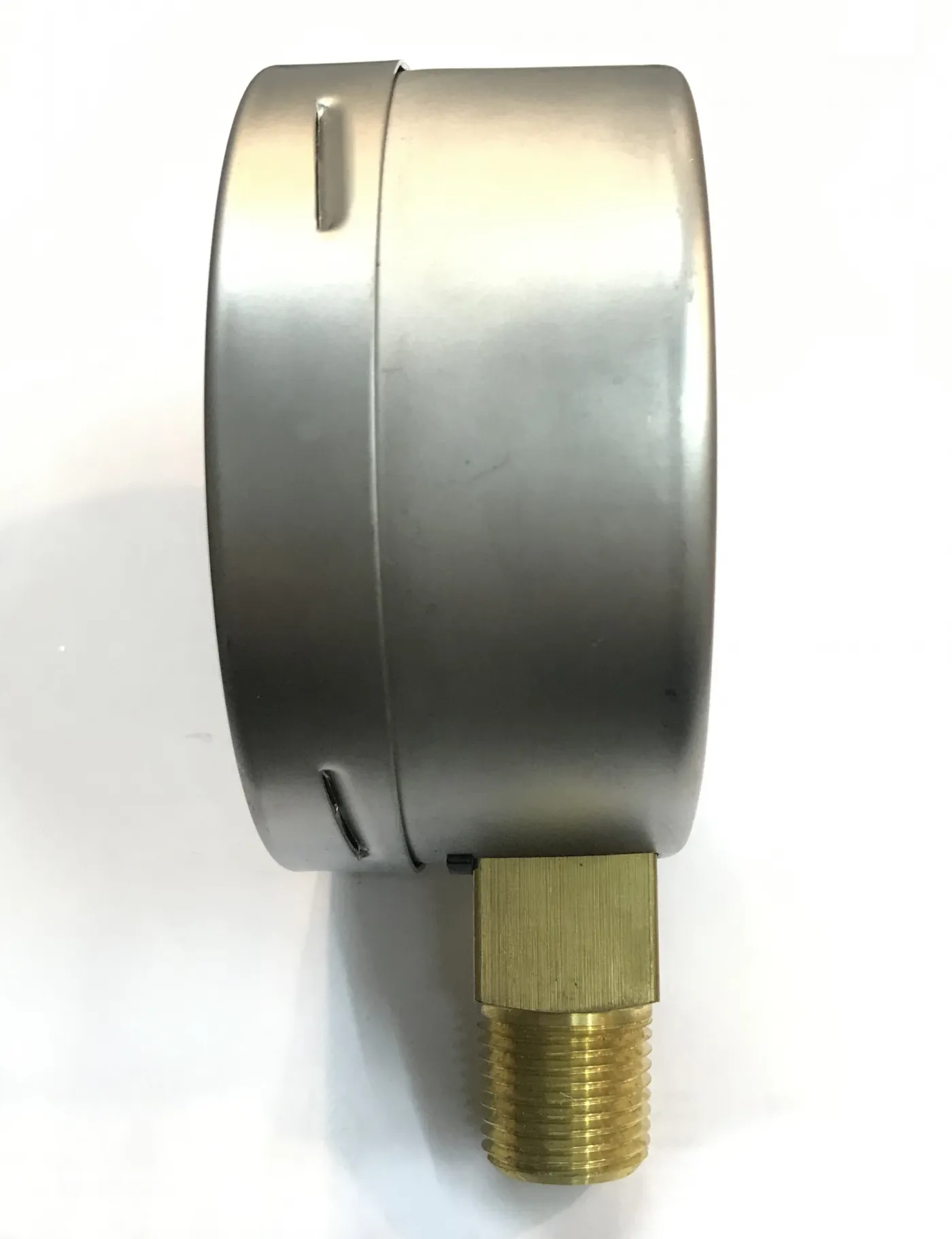

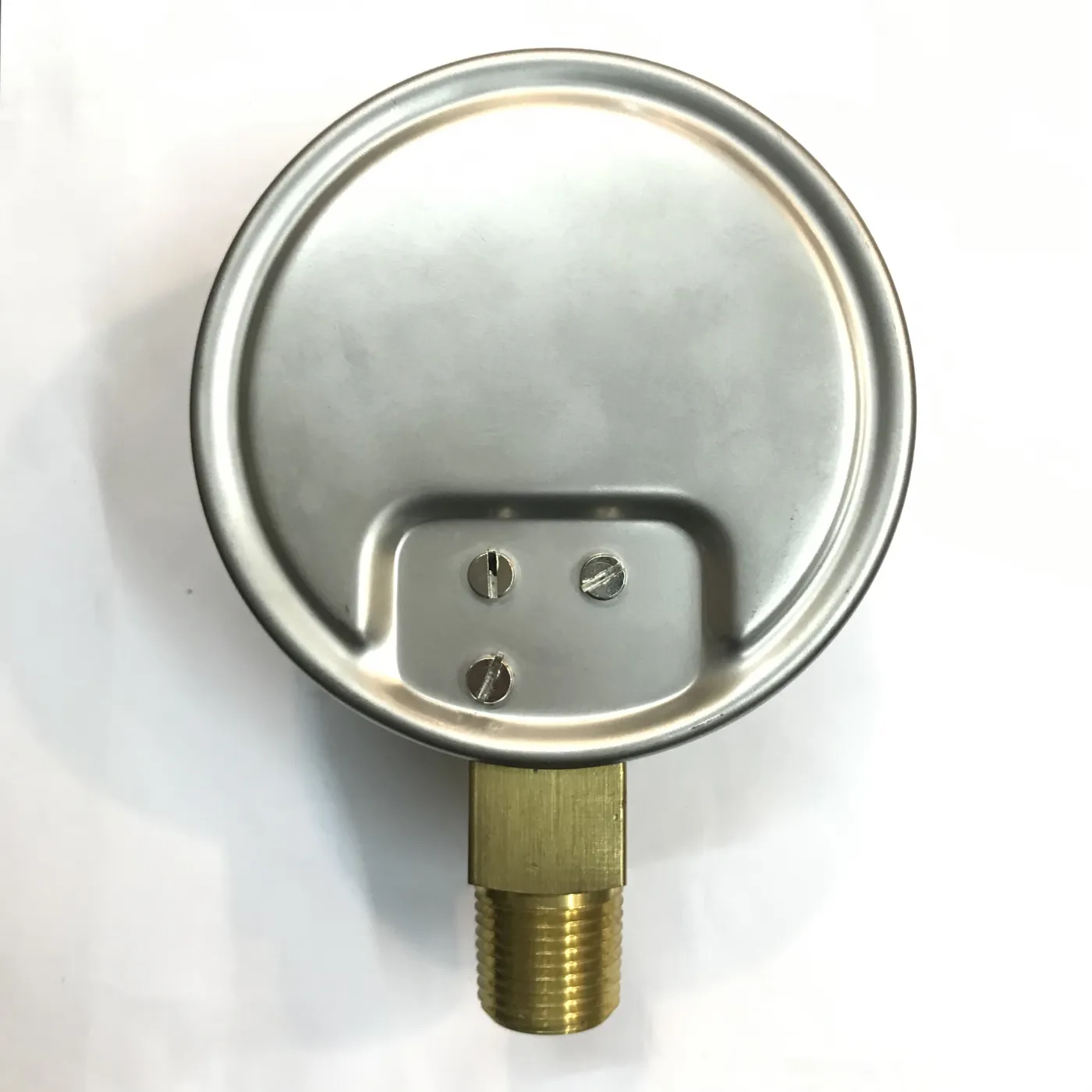

RWS 1990 Low Pressure Gauge — photo 1 RWS 1990 Low Pressure Gauge — photo 2 RWS 1990 Low Pressure Gauge — photo 3
RWS 1990

RWS 1990 Low Pressure Gauge

Used for hydraulic and pneumatic systems, compressors, compressed air system and suitable for liquid medium which does not clog connection port or stainless steel also can provide protection from vibration and pulsation.

Specifications
Size
100mm (4inch)
Scale ranges
0-25mbar/mmH20 upto 600 mbar/mmH20
Accuracy class
1.6% for Ø(40-75), 1.6% or 1% for Ø(100)
Connection
Brass, 1/2″ Ø(100)
Thread
NPT
Wetted part
Copper alloy
Case material
304 Stainless Steel
Bezel material
304 Stainless Steel
Window
Safety Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-4 F to 140 F (- 20 C to 60 C)
Media Temperature
60 C Maximum
