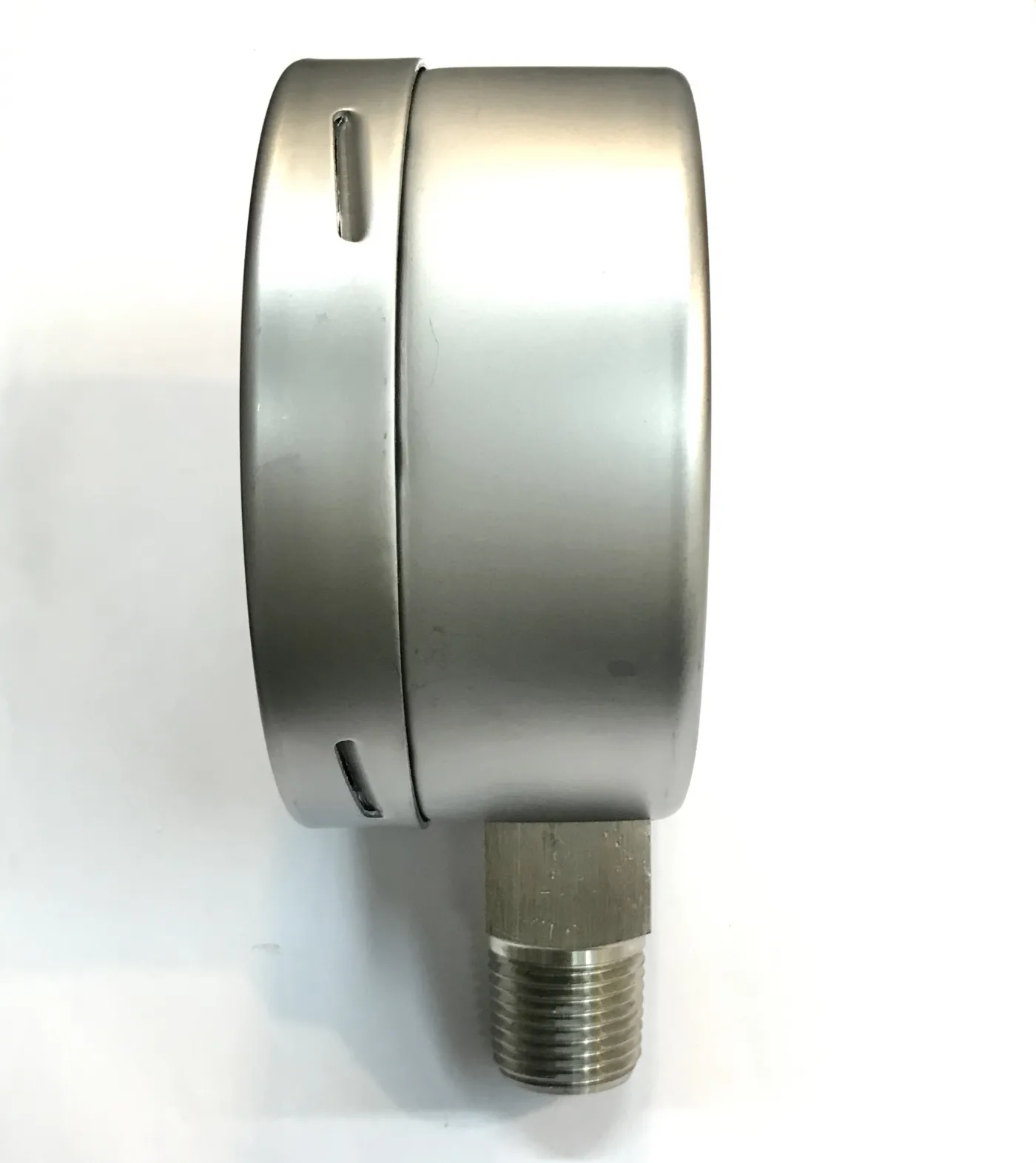

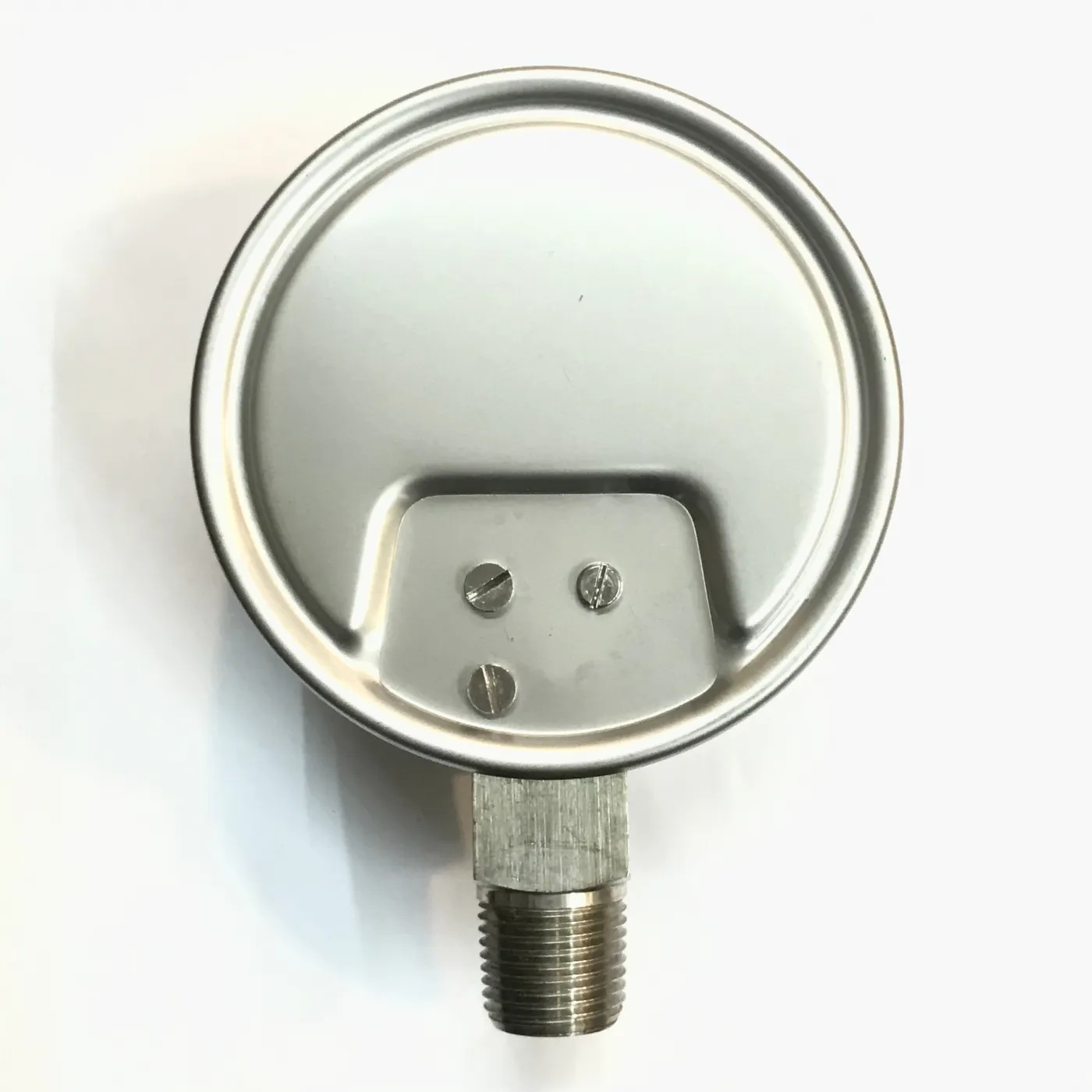

RWS 3110 Low Pressure Gauge
RWS 3110 Low Pressure Gauge — photo 1 RWS 3110 Low Pressure Gauge — photo 2 RWS 3110 Low Pressure Gauge — photo 3
RWS 3110

RWS 3110 Low Pressure Gauge

Used for hydraulic and pneumatic systems, compressors, compressed air systems and suitable for liquid media that do not clog the connection holes because they are made of stainless steel.

Specifications
Size
100mm (4inch)
Scale ranges
0-25mbar/mmH20 upto 600 mbar/mmH20
Accuracy class
1.6% for Ø(63), 1.6% or 1% for Ø(100-150)
Connection
stainless steel,1/4″ Ø(63) 1/2″ Ø(100, 150)
Thread
NPT
Wetted parts
stainless steel
Case material
stainless steel
Window
Glass
Pointer/Dial
Aluminum finished
Operating Temperature
-40 F to 140 F (- 40 C to 60 C)
Media Temperature
60 C Maximum
