RBS 1005 Pressure Gauge

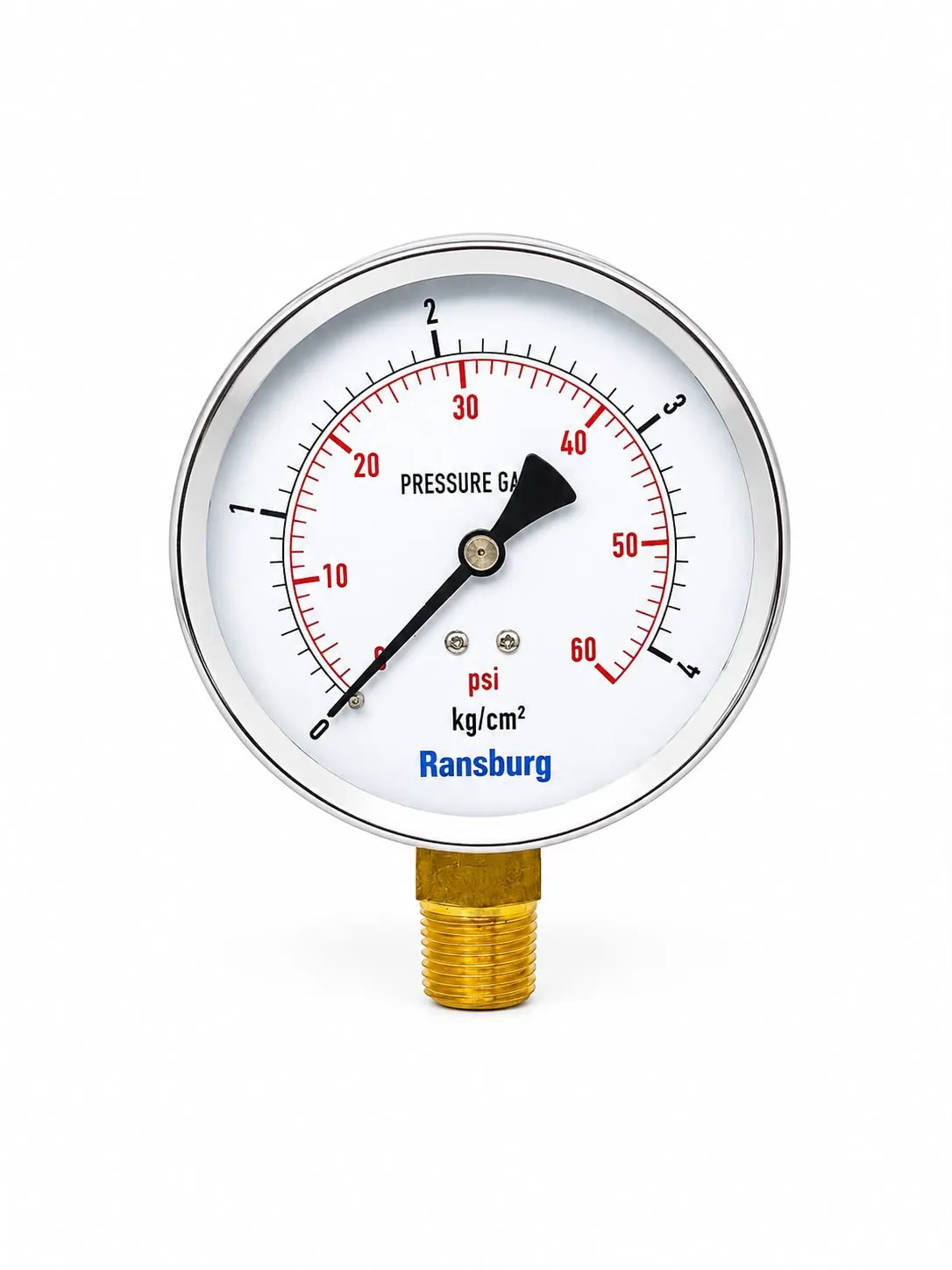

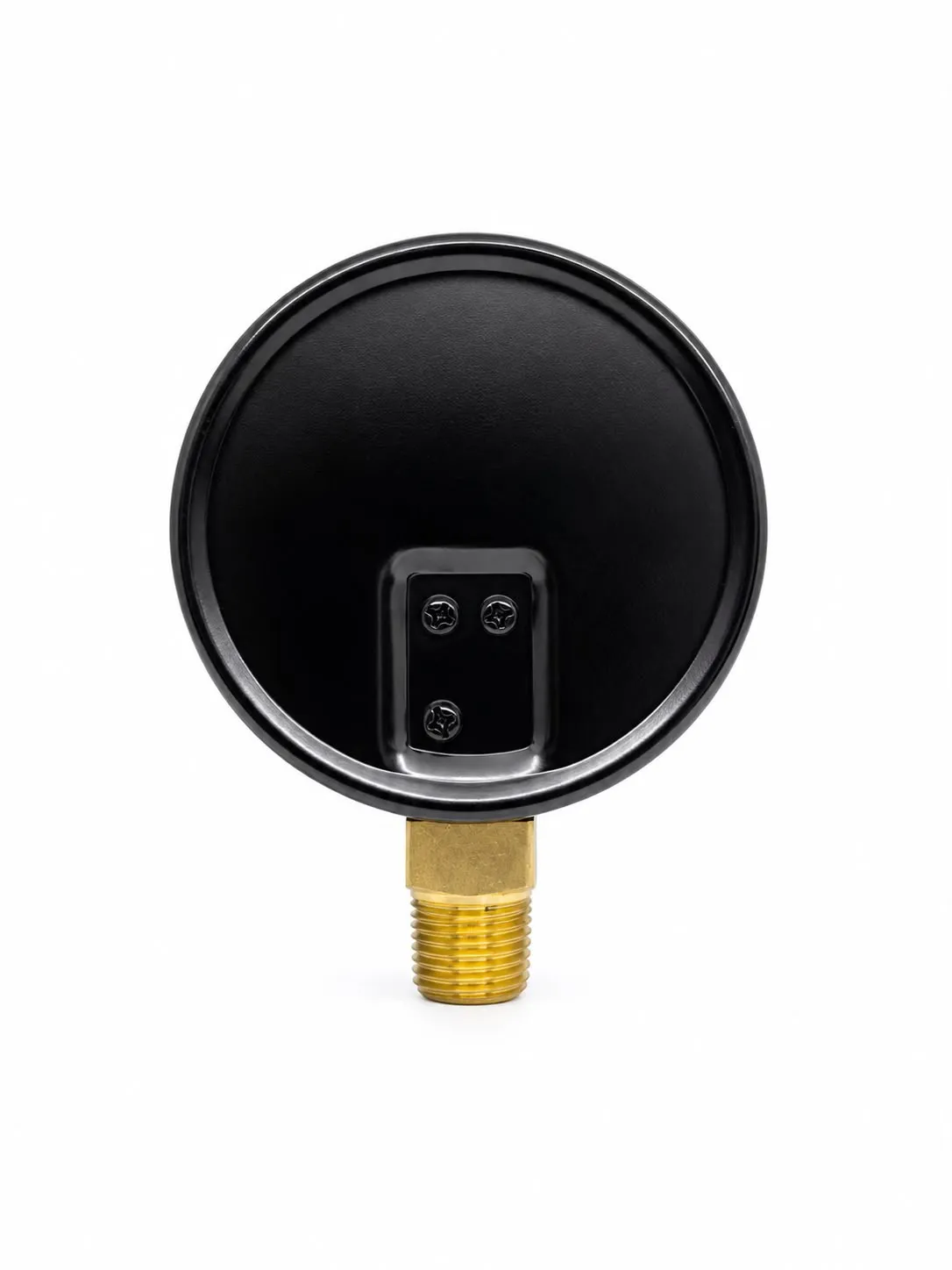

RBS 1005 Pressure Gauge — photo 1 RBS 1005 Pressure Gauge — photo 2 RBS 1005 Pressure Gauge — photo 3
RBS 1005

RBS 1005 Pressure Gauge

Pengukur tekanan dengan koneksi belakang. Dapat diaplikasikan untuk sistem pneumatik, kompresor, cocok untuk media cair dan tidak menyumbat lubang koneksi atau menyebabkan korosi pada tembaga.

Spesifikasi
Size
100mm (4inch)
Case
Black steel (Black pointing steel, chromed steel, ABS)
Ring
No (black steel, black painting steel, chromed steel)
Window
Acrylic (glass, acrylic glass, polycarbonate)
Socket and connection
Brass
Movement
Semi-brass (complete brass)
Bourdon tube
Copper alloy (brass) Pointer and dial: aluminium
Range
Vacuum, Compound 0 tp 6000psi accuracy
Class
°F ‡ 3/2/3% (ASME B40. 100 Grade B) KI 2.5 FOR 1 1/2", 2", KI 1.6 FOR 2 1/2", 3", 4"
Ambient
-40°F to 140°F (-40°C TO 60 °C) Media: 140°F (+60°C)
Minta Penawaran Tempat Membeli ← Kembali
