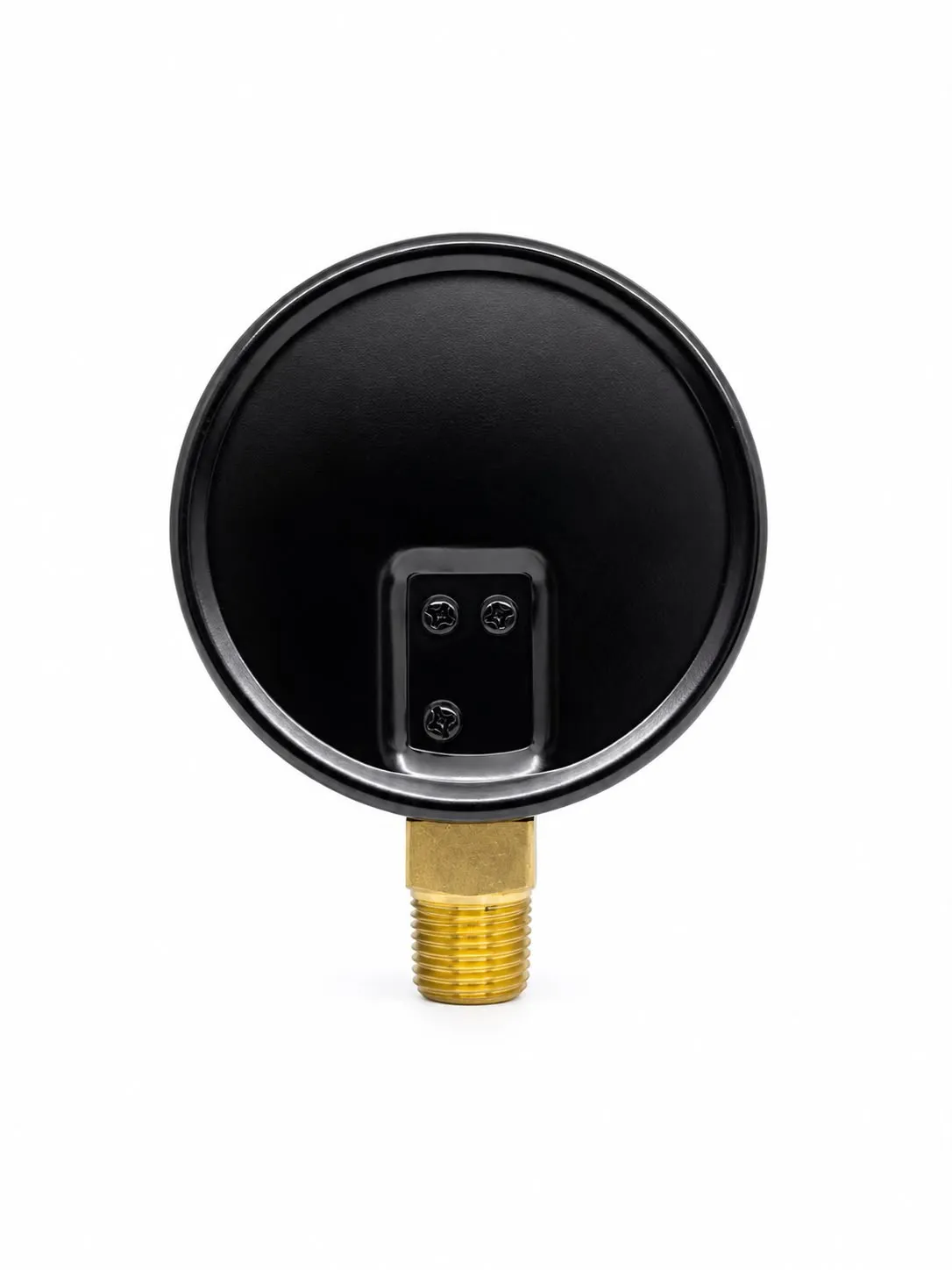

RBS 1005 Pressure Gauge

Name: RBS 1005 Pressure Gauge
Brand: Ransburg
SKU: RBS 1005

Pressure gauge back connection with front flange. Applications used for pneumatic systems, compressors, suitable for liquid medium which does not clog connection port or corrode copper alloy.

Specifications

Size

100mm (4inch)

Case

Black steel (Black pointing steel, chromed steel, ABS)

Ring

No (black steel, black painting steel, chromed steel)

Window

Acrylic (glass, acrylic glass, polycarbonate)

Socket and connection

Brass

Movement

Semi-brass (complete brass)

Bourdon tube

Copper alloy (brass) Pointer and dial: aluminium

Range

Vacuum, Compound 0 tp 6000psi accuracy

Class

°F ‡ 3/2/3% (ASME B40. 100 Grade B) KI 2.5 FOR 1 1/2", 2", KI 1.6 FOR 2 1/2", 3", 4"

Ambient

-40°F to 140°F (-40°C TO 60 °C) Media: 140°F (+60°C)
